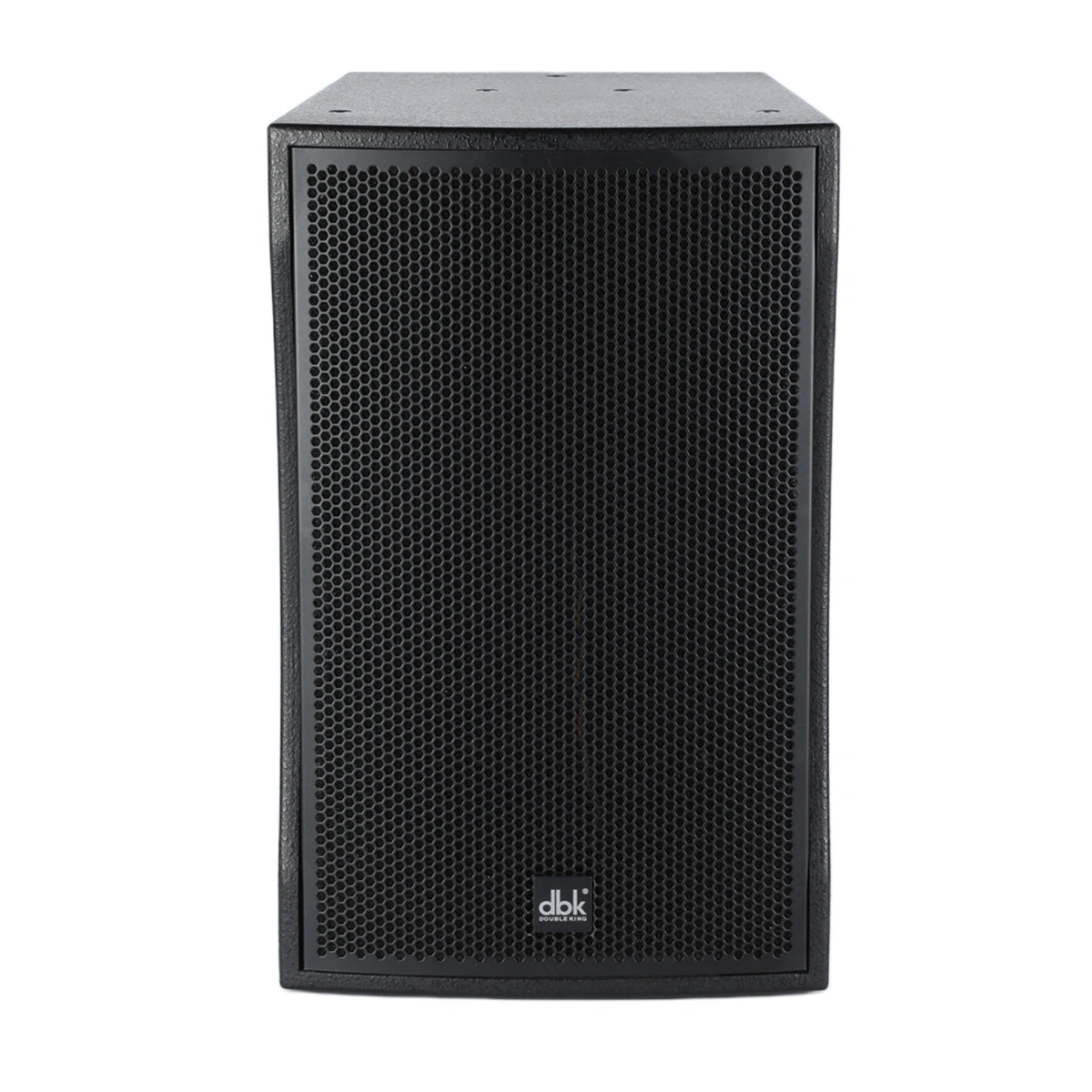

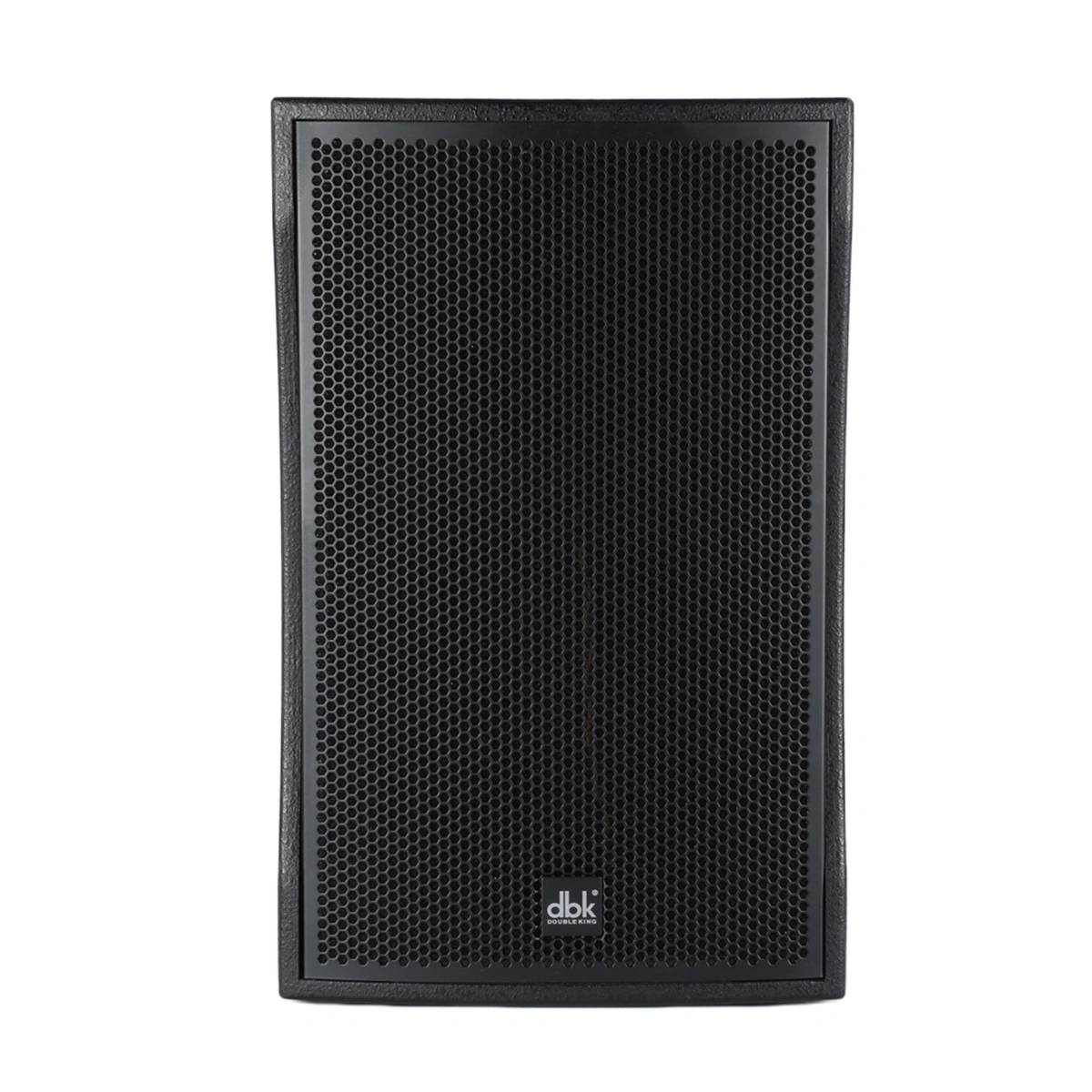

DBK 12 Inch Full Range Point Source Speaker

Product Description:

Model: DSL

Type: Point Source Speaker

Frequency Response: LF 90-250Hz MF 250-800Hz HF 800-20000Hz

Power: LF 2×600W(RMS) 1200W(PEAK) MF 4×200W(RMS) 1600W(PEAK) HF 1×230W(RMS) 460W(PEAK)

Sensitivity: LF 107dB(1W@1M) MF 108dB(1W@1M) HF 116dB(1W@1M)

Maximum Sound Pressure: LF 138dB(PEAK/1M) MF 137dB(PEAK/1M) HF 140dB(PEAK/1)

Woofer: 2×12 inch 75-cell woofer

Midrange: 4×8-inch 65-core woofer

Tweeter: 1 × 3-inch 74-core tweeter

Impedance: LF 2×8 ohms MF 8 ohms HF 8 ohms

Coverage: 60°H×40°V

Cabinet Construction:Baltic Birch Plywood

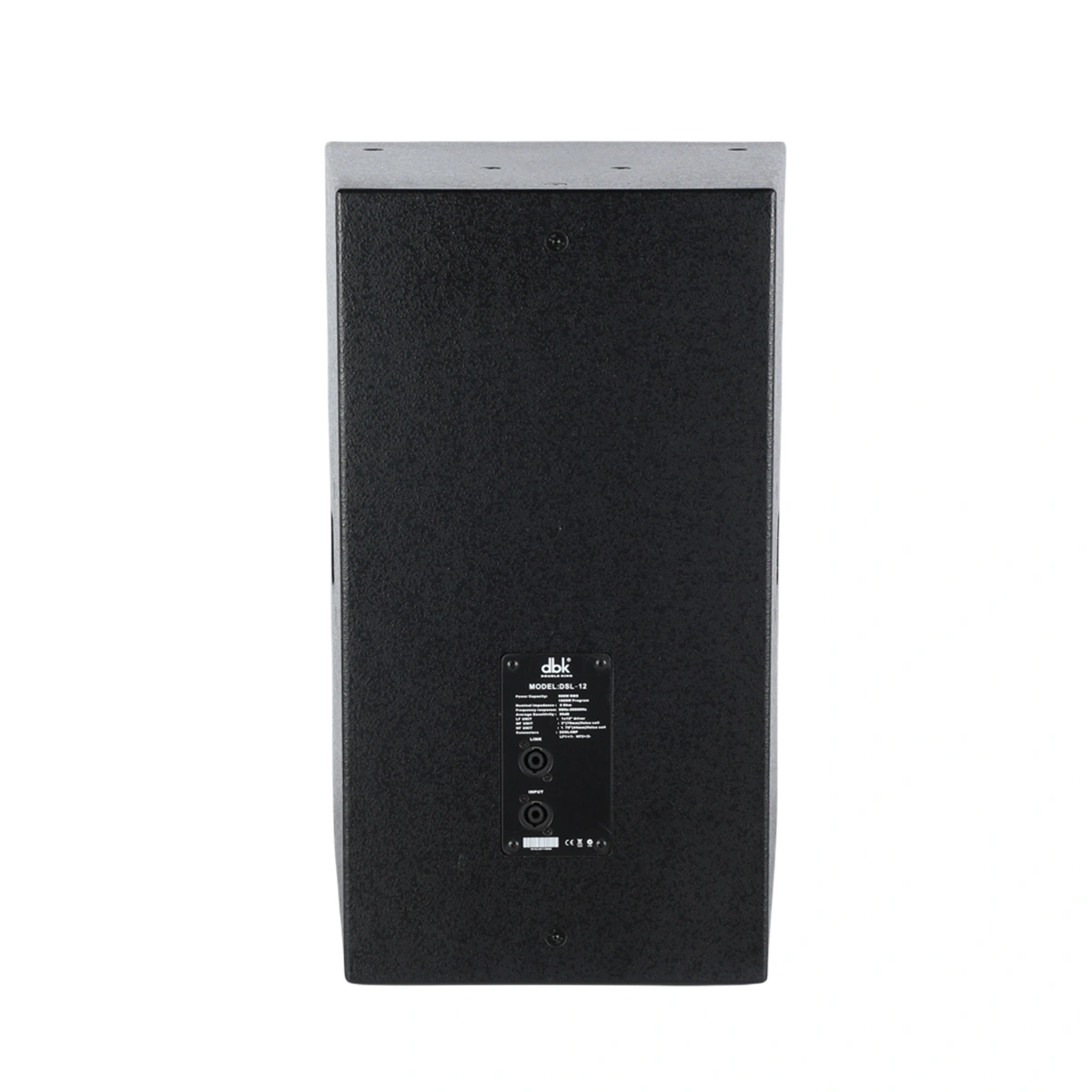

Speaker Input Connection: Two NL8 jacks LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)

Dimension:W458*H718*D625

Net weight:64kg

The DSL Large Point Source Speaker is a large 3-way driven three-way system. Low frequency part of the use of two high-power 12-inch paper cone woofer differential output, the midrange part of the four high-sensitivity 8-inch midrange unit, midrange surface mounted mid-range phase plugs to improve the directivity and increase the sensitivity of the high end of the midrange. The high-frequency section uses a 74mm (voice coil) neodymium magnetic composite membrane compression unit, through a gradient hyperbolic constant pointing to the horn output.

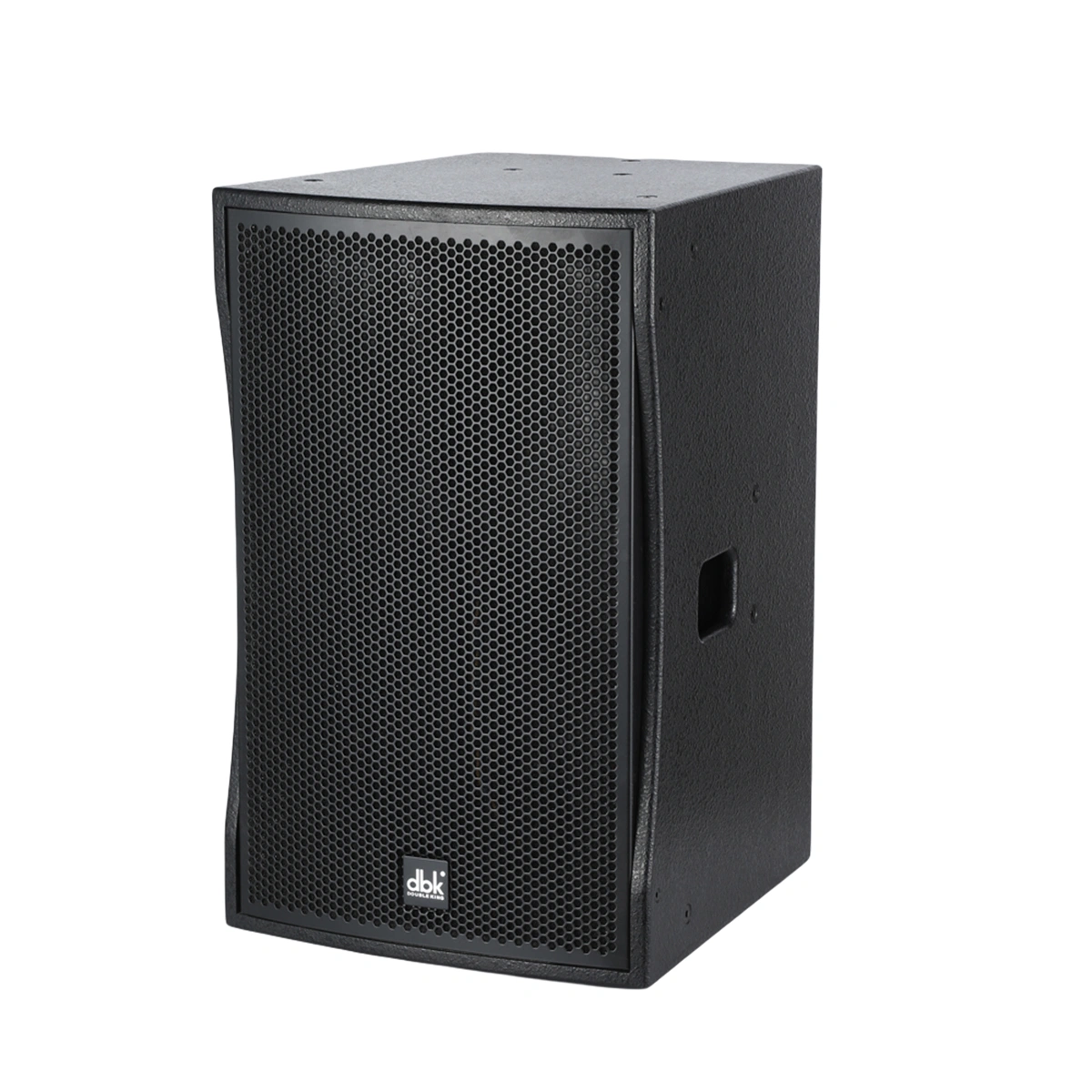

DSL's cabinet is trapezoidal, high, middle and low units are independent of the horn output, increasing the sound pressure of the speaker and minimizing the interference between the units. Precise positional positioning between the units to ensure that the cabinet is compact to the extreme, thus producing excellent quality sound, the cabinet is composed of panel 18mm plywood, the surface of the wear-resistant black dotted waterproof wear-resistant gold sand paint. 2 flush with the cabinet embedded handles mounted on both sides of the speaker, easy to carry. Black perforated iron mesh cotton to protect the speaker unit.DSL with DSLSUB double eighteen subwoofer combination, so that the whole system sounds powerful low-frequency, elasticity, mid-high-frequency bright and clear, ultra-high delicate and moving.
