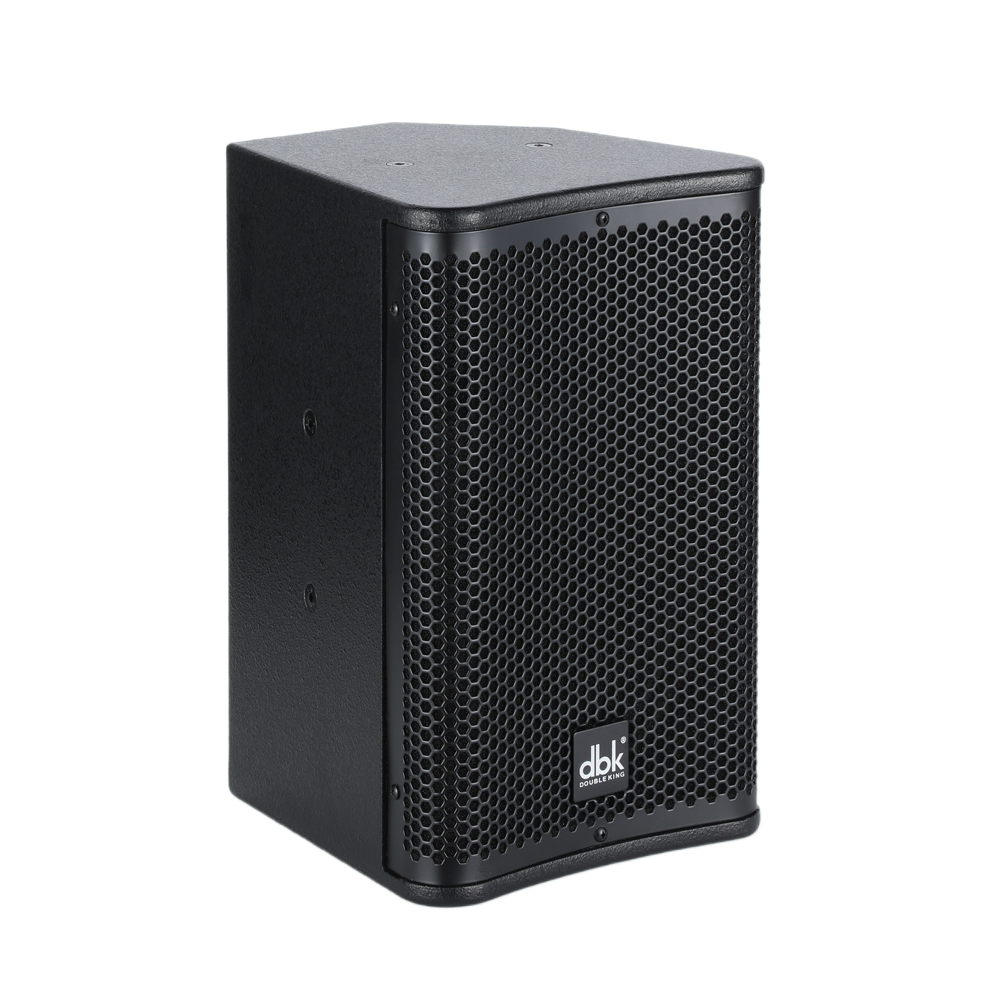

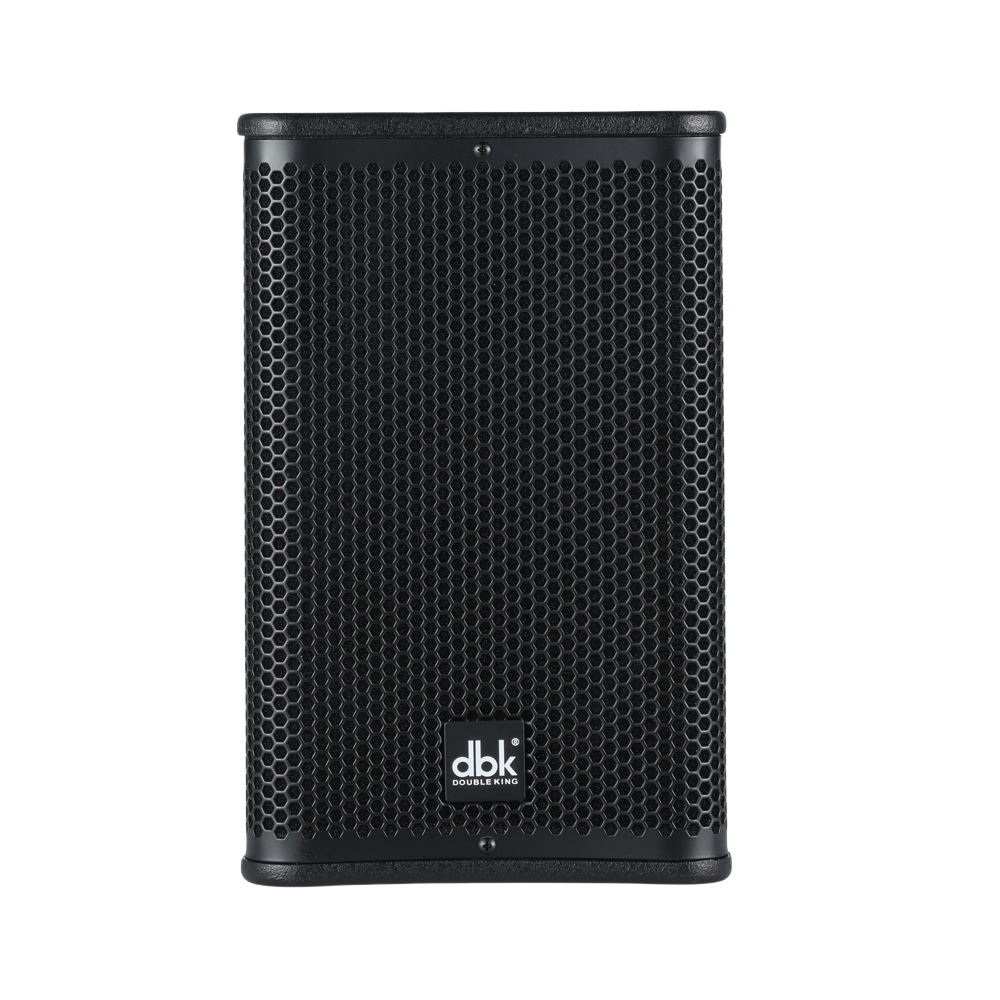

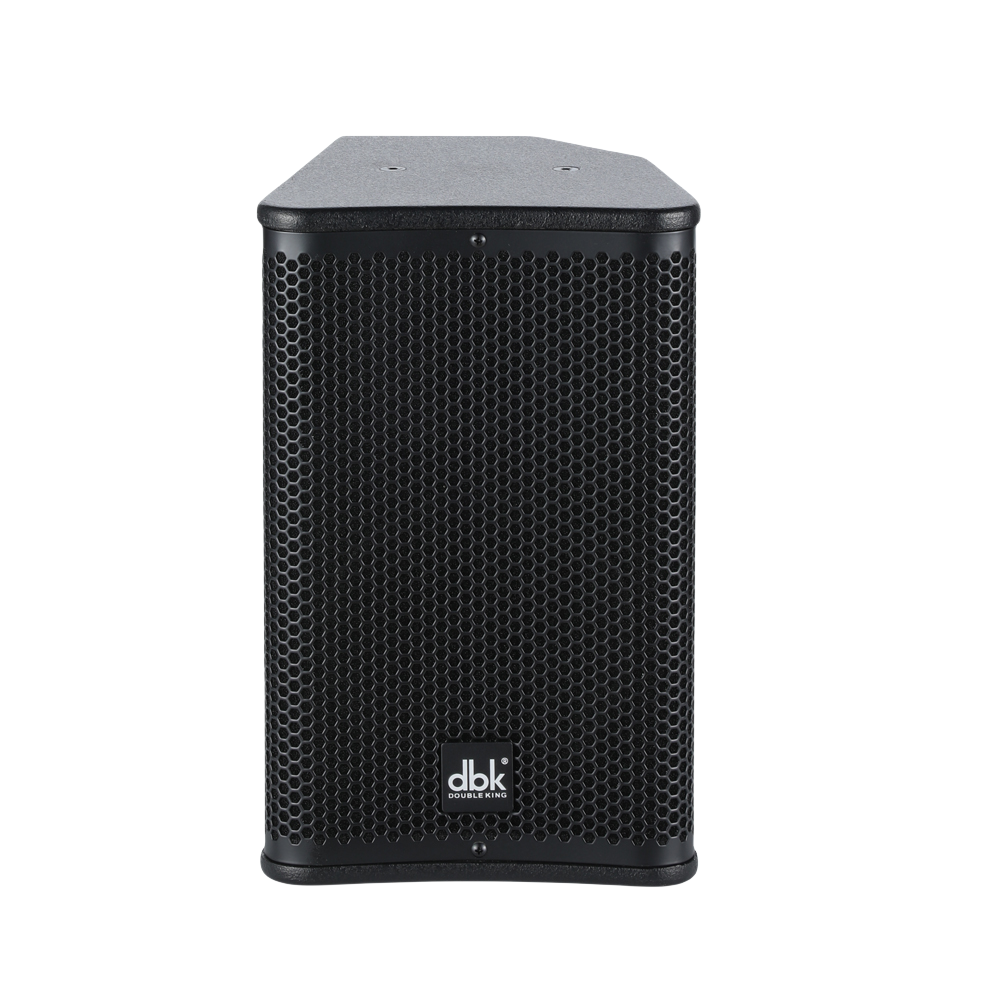

DBK 8 Inch Full Range Speaker

Model: GK8

Type: two-way full-range box

Frequency Response: 75Hz-20kHz±3dB

Power: 150W(AES)300W(PEAK)

Sensitivity: 94dB(1W@1M)

Maximum sound pressure: 116dB (PEAK/1M)

Woofer: 8-inch 35-core woofer

Tweeter: 1-inch 25-core tweeter

Impedance: 8 ohms

Treble Protection: PTC Linkage Protection Device

Coverage: 80°H×50°V

Cabinet structure: Baltic birch plywood

Speaker input connections: two NL4 jacks 1 (+) 1 (-)

Dimensions: W248*H388*D250

Net weight: 10kg

Features: GK full series of professional digital audio crossover technology using DBK, the starting point of the design is mainly to undertake the use of large box store to help the sound function, pay attention to the sound of the fineness and restore the ability to sound performance is natural, the frequency band is smooth, there is a very good degree of high-frequency smoothness and low-frequency softness. In order to let the GK-8 surround sound field to play the best effect, in the sound pressure level and the transition ability to enhance the work of the special bear the energy, the purpose is to ensure that the GK-8 with the GK-12/15 on the basis of a long period of time, high power to work stably, GK-8 is a polygonal box, the radiation angle of 50-80 degrees, crossover passive network, 8 ohm 200 watt design of the speaker design to meet the power of the sound field uniformity and sound pressure and sound pressure, and the design of the speaker is better. Uniformity of the sound field and sound pressure level, while users are recommended to use more than 400 watts amplifier matching speakers, so that BK-10 can play more transparent and natural.
