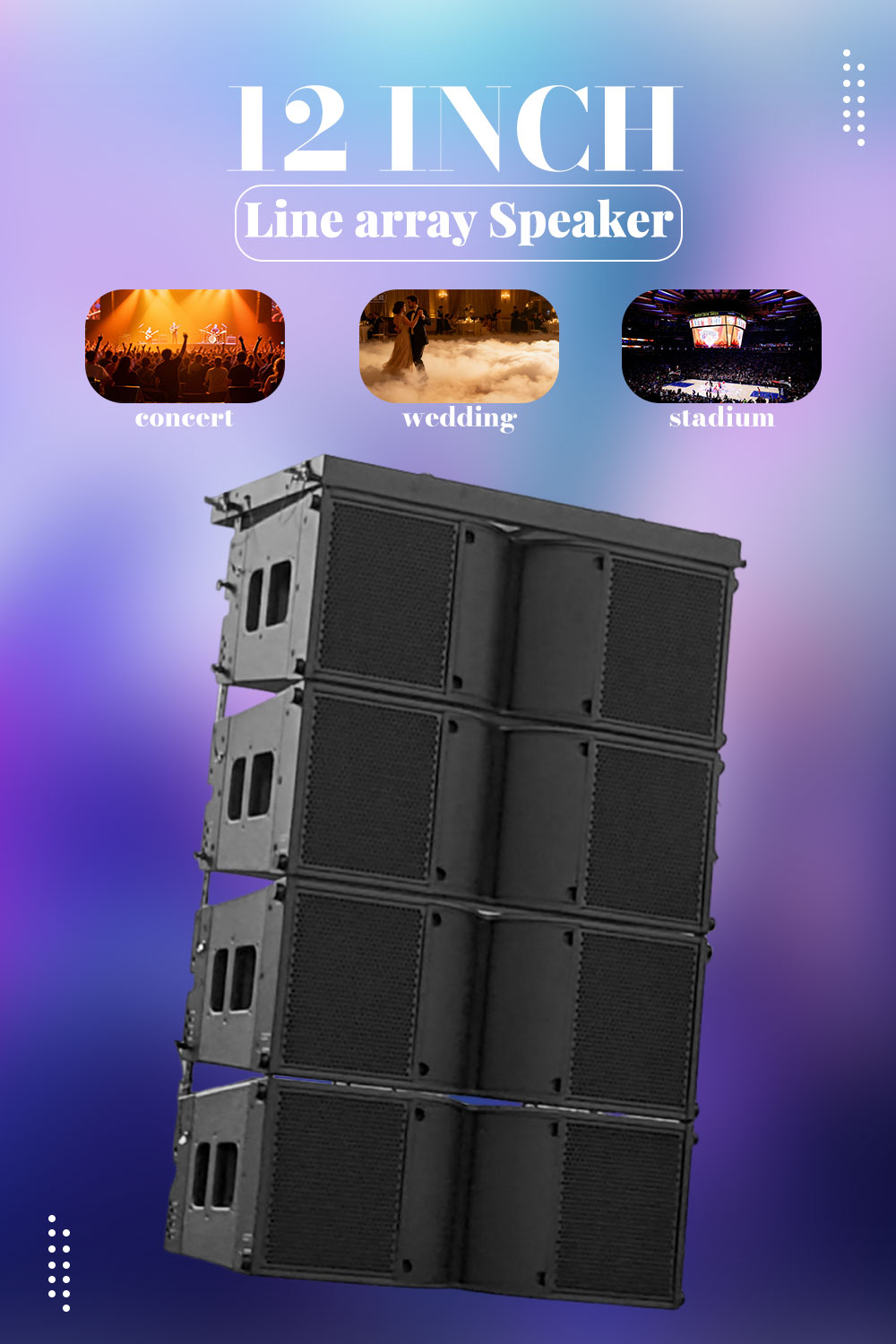

K212 Linear Array Speaker – High Output Dual 12-Inch Professional Line Array System

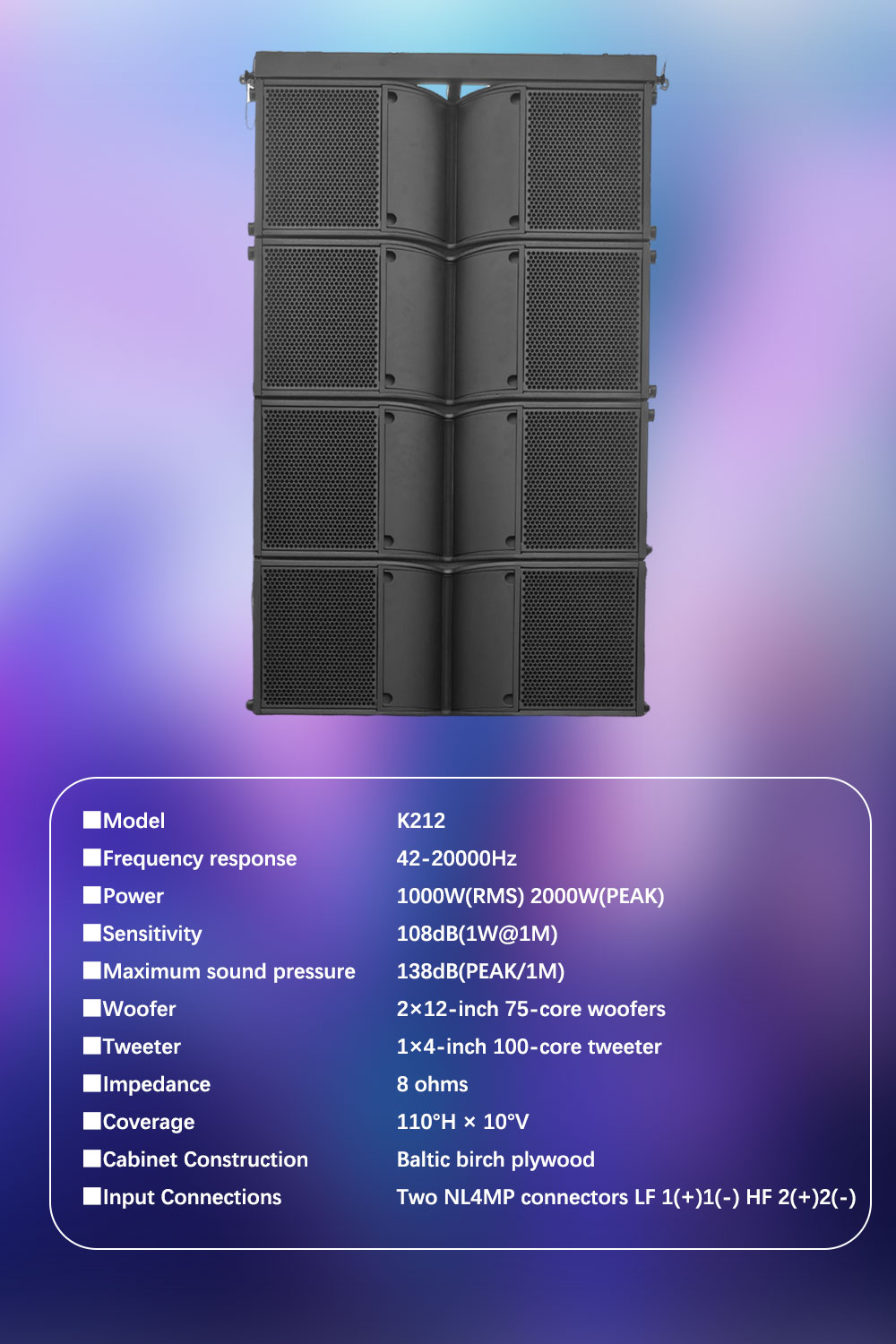

Frequency response: 42-20000Hz
Power:1000W(RMS) 2000W(PEAK)
Sensitivity:108dB(1W@1M)
Maximum sound pressure: 138dB(PEAK/1M)
Woofer: 2×12-inch 75-core woofers
Tweeter: 1×4-inch 100-core tweeter
Impedance: 8 ohms
Coverage: 110°H × 10°V
Cabinet Construction: Baltic birch plywood
Input Connections: Two NL4MP connectors LF 1(+)1(-) HF 2(+)2(-)
48kg
The K212 is a powerful and efficient linear array speaker designed for professional sound reinforcement applications such as live concerts, touring systems, festivals, theaters, and rental sound solutions. With a well-balanced frequency response and high sound pressure capability, the K212 delivers clear, dynamic, and controlled audio performance in demanding environments.
Equipped with two high-power 12-inch woofers and a 4-inch compression tweeter, the K212 provides strong low-frequency punch, solid midrange presence, and smooth, detailed high frequencies. The frequency response of 42Hz to 20kHz ensures full-range sound reproduction suitable for both music and speech reinforcement.
With a rated power handling of 1000W RMS and 2000W peak, combined with a sensitivity of 108dB, the K212 is capable of producing a maximum sound pressure level of up to 138dB. This high output performance makes it suitable for medium to large-scale sound systems where clarity and volume are equally important.
The 110-degree horizontal and 10-degree vertical coverage pattern allows precise sound control and excellent array coupling when multiple cabinets are combined. This controlled directivity helps deliver consistent sound coverage across the audience area while minimizing unwanted reflections.
The cabinet is constructed from high-quality Baltic birch plywood, providing strong structural integrity, reduced resonance, and long-term durability for touring and rental use. Professional NL4MP input connectors support separated low-frequency and high-frequency signal connections, ensuring stable and reliable system integration.
With its robust construction, high SPL capability, and professional acoustic design, the K212 linear array speaker is an ideal choice for sound engineers and system integrators seeking reliable performance and scalable line array solutions.
