DBK Dual 10-Inch Three-Way Full-Range Point Source Speaker

DBK Dual 10-Inch Full Range Speaker-Professional Audio Sound Equipment

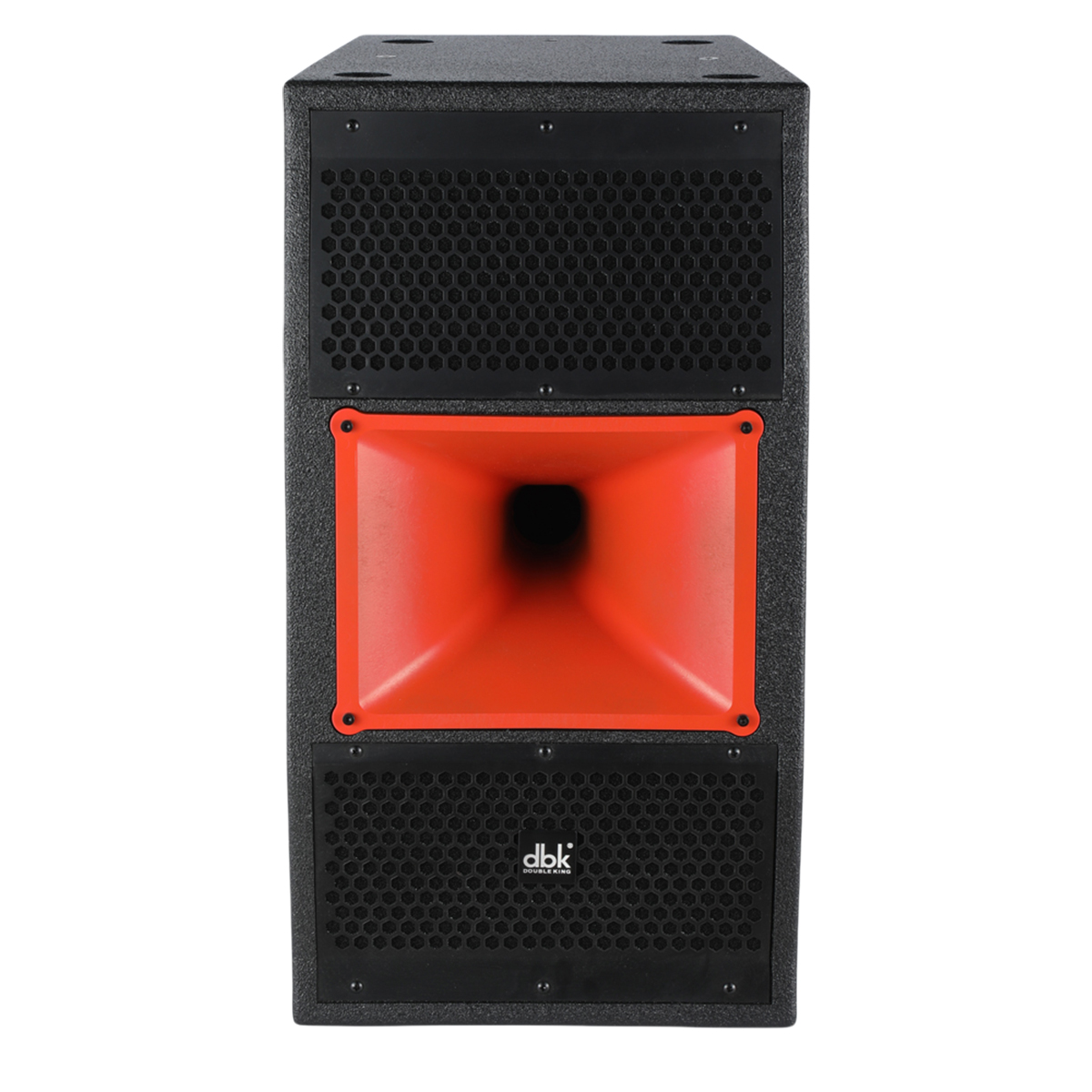

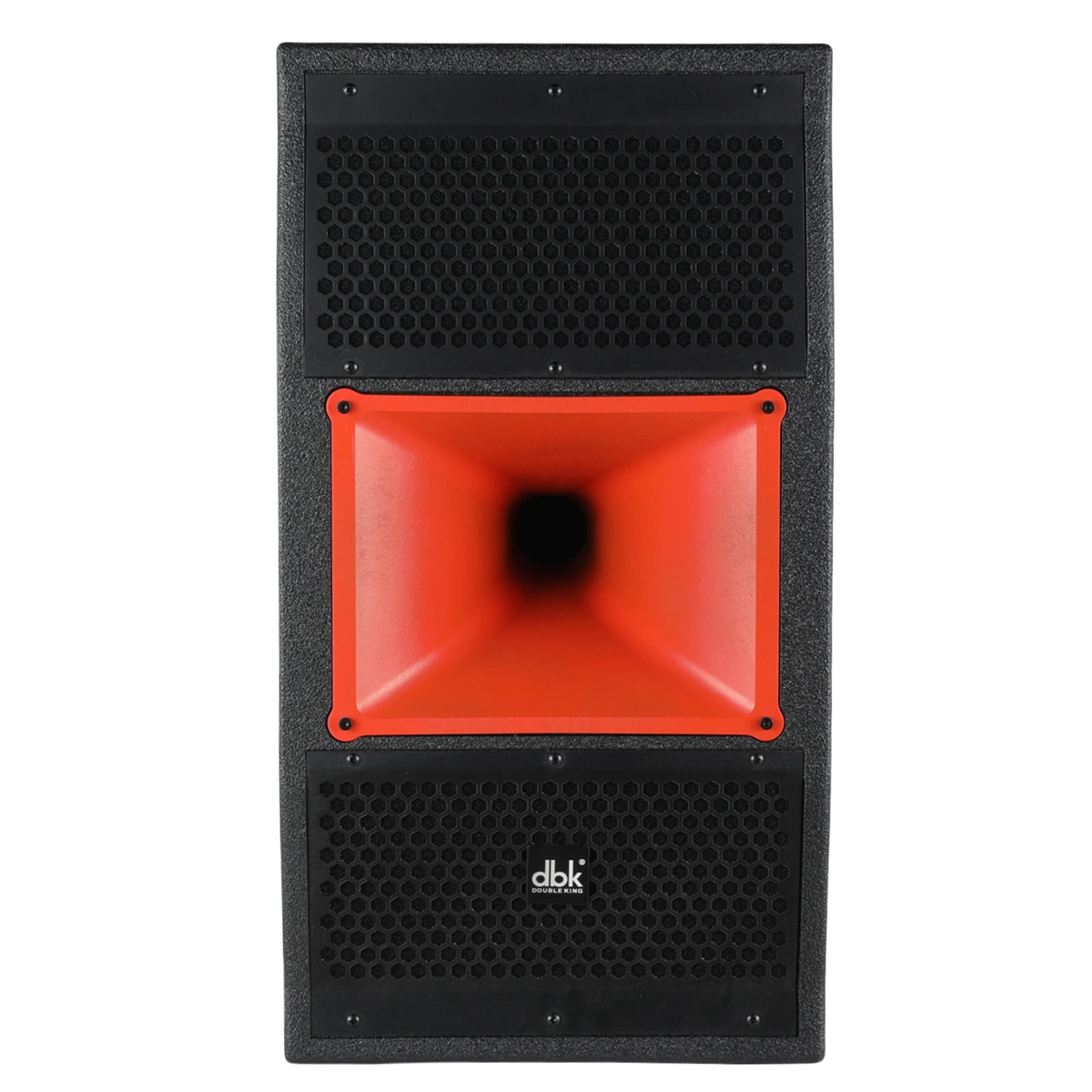

The DSL 210 is a robust full range speaker designed for demanding professional audio applications. This advanced sound equipment delivers exceptional clarity across its entire frequency spectrum, powered by dual 10-inch woofers, a 3-inch midrange, and a 1.75-inch tweeter. With high sensitivity and a peak SPL of 137dB, it provides powerful, articulate performance for live sound and mobile DJ use. Housed in a durable Baltic birch plywood cabinet with a 60°x40° coverage pattern, this reliable full range speaker is essential sound equipment for any professional audio setup requiring high output and fidelity.

Model: DSL 210 Type Point Source Speaker

Frequency Response LF 80-800Hz MF 800-7000Hz HF 7000-20000Hz

Power LF 2×300W(RMS) 1200W(PEAK) MF 1×200W(RMS) 400W(PEAK) HF 1×80W(RMS) 160W(PEAK)

Sensitivity LF 105dB(1W@1M) MF 112dB(1W@1M) HF 114dB(1W@1M)

Maximum Sound Pressure LF 133dB(PEAK/1M) MF 137dB(PEAK/1M) HF 133dB(PEAK/1M)

Woofer 2×10 inch 75-cell woofer

Midrange 1×3 inch 75-core midrange tweeter

Tweeter 1×1.75 inch 44-core tweeter

Impedance LF 4 ohms MF 8 ohms HF 8 ohms

Coverage 60°H x 40°V

Cabinet Construction: Baltic Birch Plywood Speaker Connections

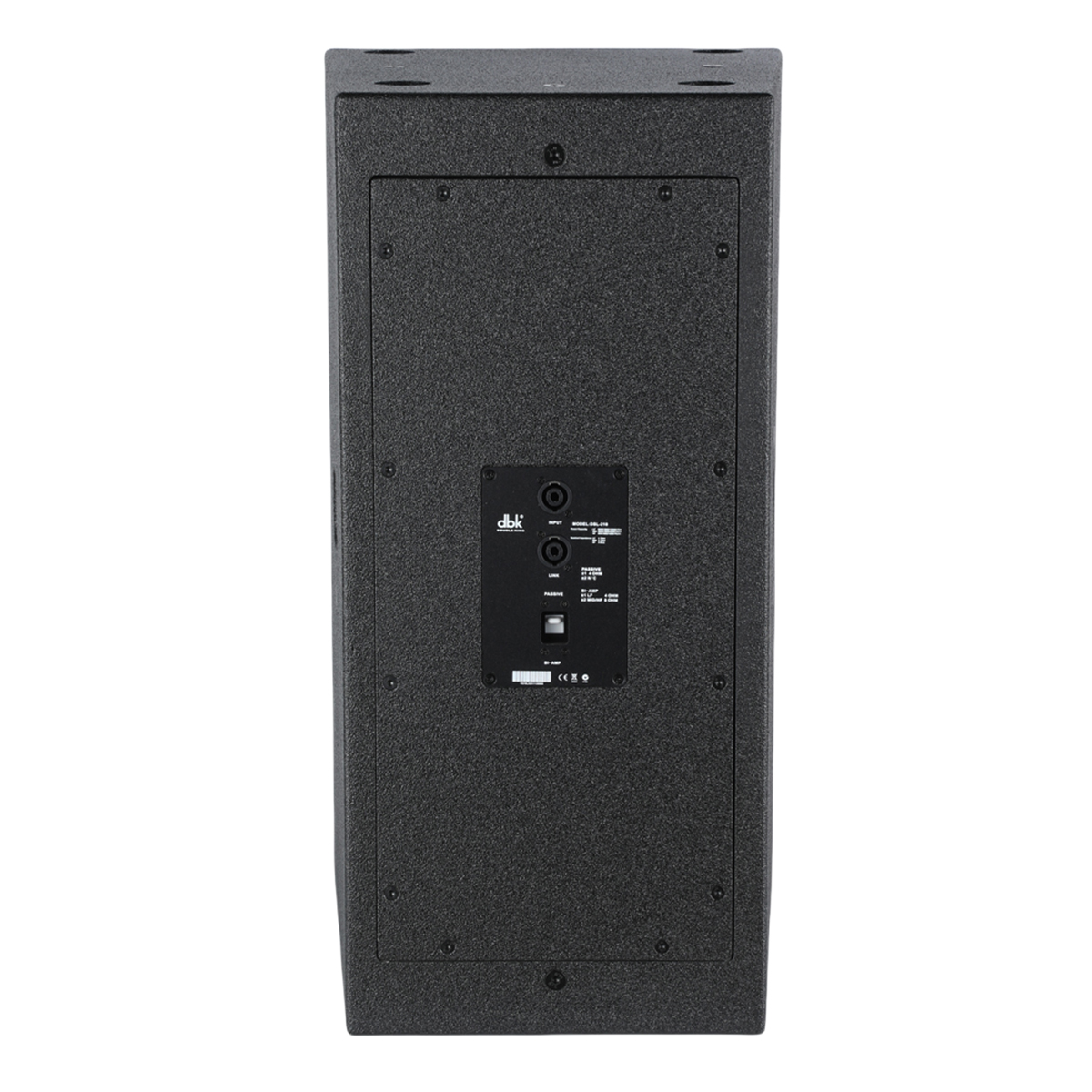

Input Connections Two NL8 jacks LF 1(+)1(-) MF/HF 2(+)2(-)

Dimensions W360*H660*D462

Net weight 35kg

The DSL210 loudspeaker is a medium-sized 3-way driven three-way system. Low-midrange part of the use of two high-power 10-inch paper cone woofer neodymium magnet unit front phase plug plus horn, the midrange part of the use of a 74mm (voice coil) neodymium magnetic composite membrane compression unit, high-frequency part of the use of a 44mm (voice coil) neodymium magnetic composite membrane compression unit, through a gradient hyperbolic constant-pointing to the horn output. Internal and external crossovers are available.

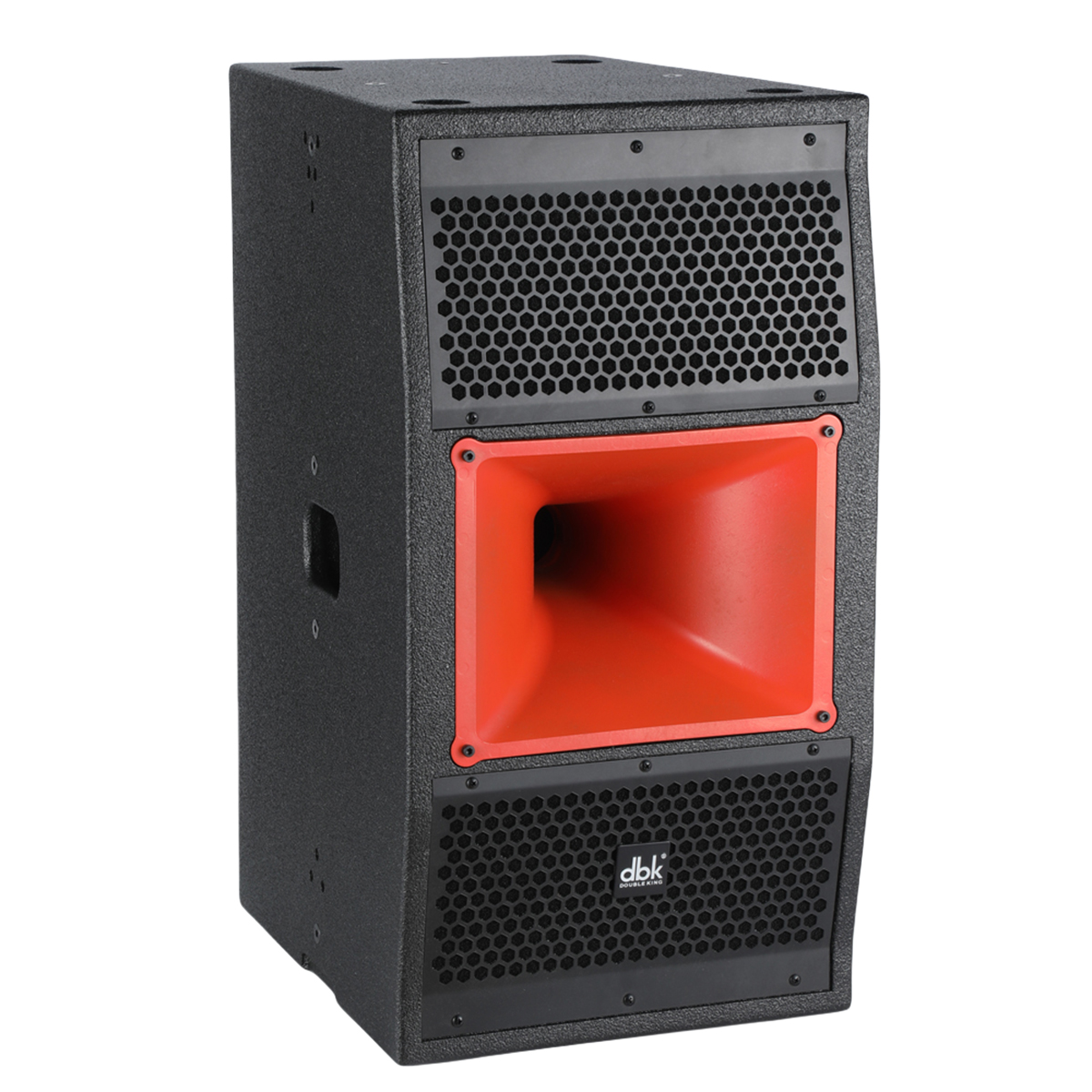

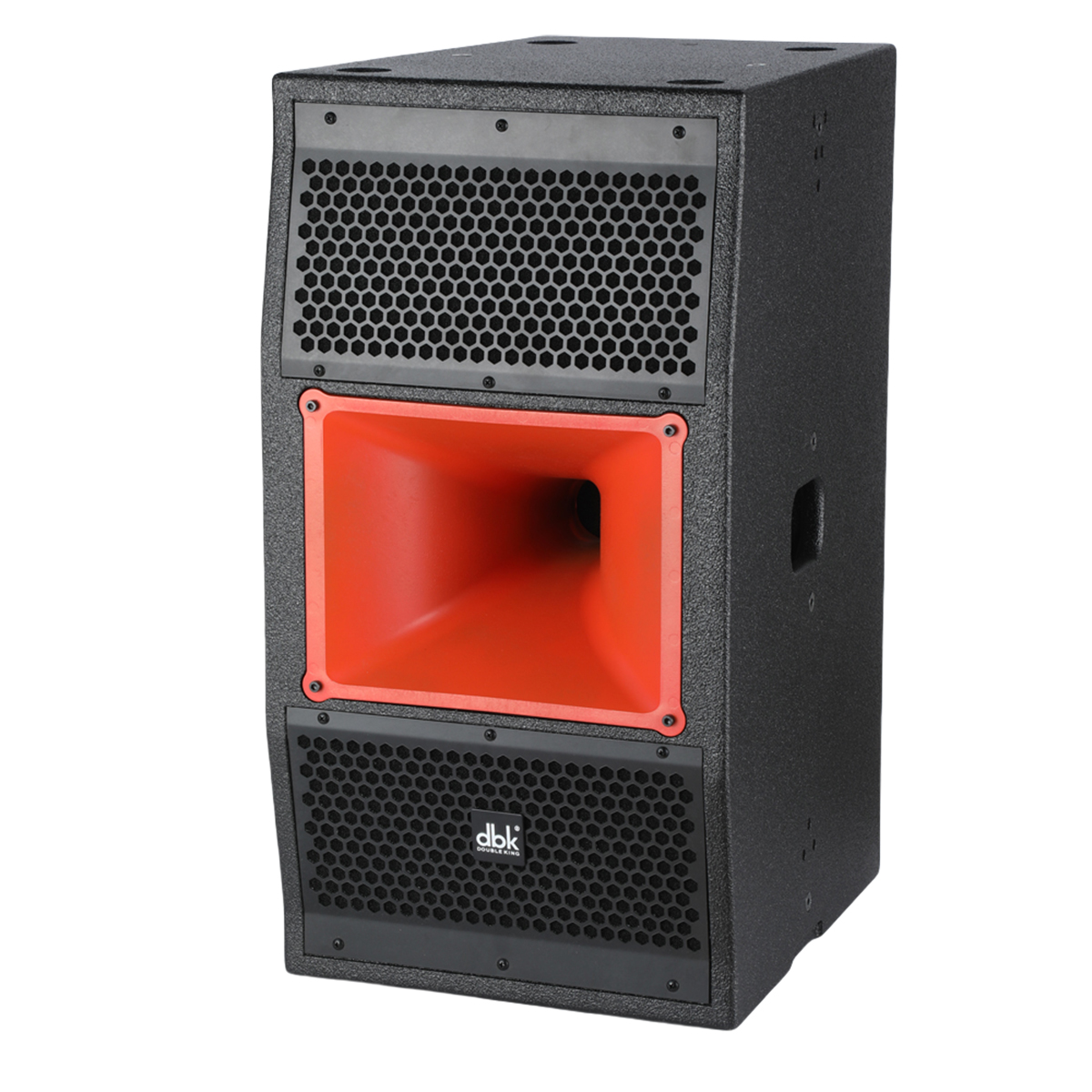

DSL210 cabinet for trapezoidal, high, medium and low units are independent horn output, improve the sound pressure of the speaker, minimize the interference between the units. Precise positional positioning between the units to ensure that the cabinet is compact to the extreme, thus producing excellent quality of sound, the cabinet consists of a panel of 15mm plywood, the surface of the wear-resistant black dotted waterproof abrasion-resistant gold sand paint. 2 flush with the cabinet embedded handles mounted on both sides of the speaker, easy to handle. The black perforated iron mesh is laminated to protect the speaker unit.
