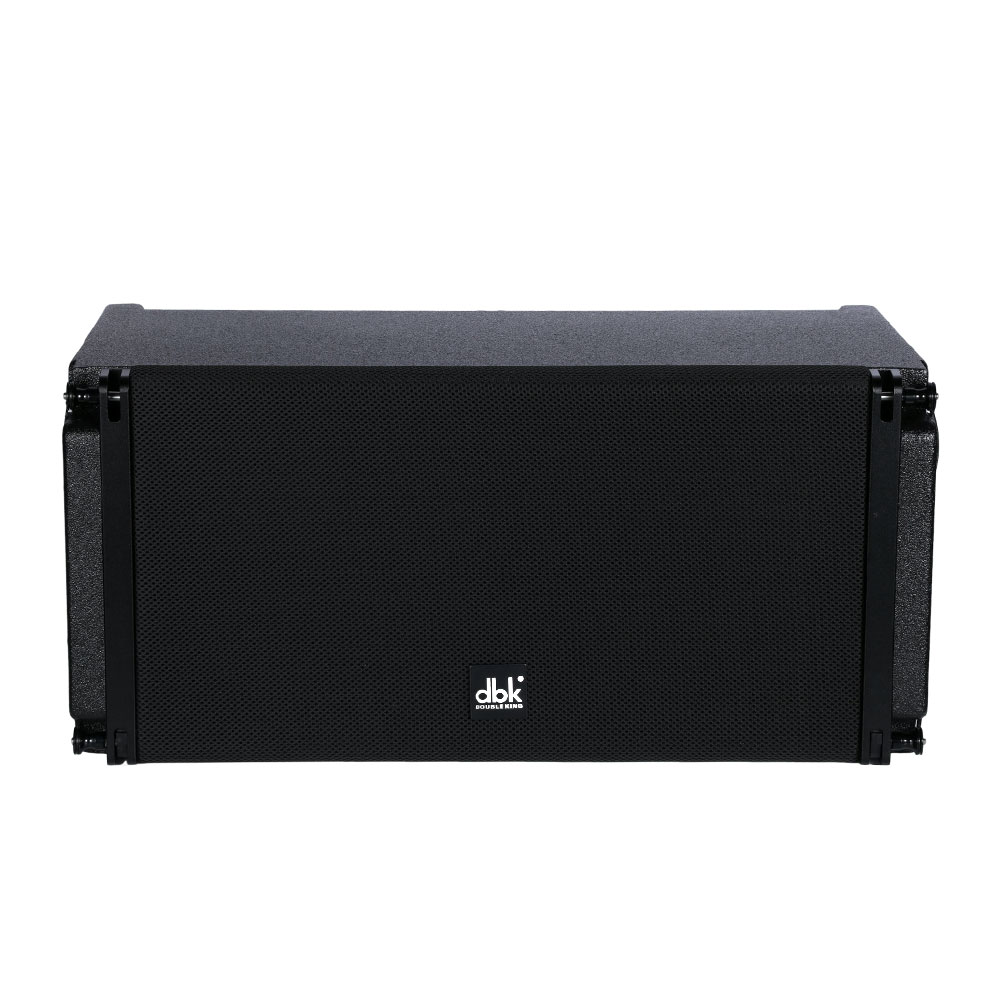

DBK V20 Dual 10-inch Compact Line Array Speaker

Introducing the DBK V20, a high-performance compact line array speaker engineered to deliver powerful, full-range sound from a remarkably efficient design. Utilizing larger, high-output drivers, the V20 is built for applications where high sound pressure levels, extended low-frequency response, and broad coverage are required, all within a streamlined and tour-ready enclosure. Its robust power handling and high sensitivity make it an outstanding choice for mobile DJs, live sound reinforcement for medium-sized venues, and portable PA systems.

The V20 is designed to deliver exceptional acoustic output. It features a powerful low-frequency section equipped with two long-excursion 10-inch woofers, each built with a 65mm voice coil and neodymium magnet structure. This advanced driver technology provides greater efficiency, higher power handling, and deeper, more authoritative bass response compared to standard designs. The high-frequency section is driven by a single, ultra-high-power 3-inch compression driver with a massive 75mm voice coil and neodymium magnet. This large-format HF driver ensures exceptional clarity, detail, and reliability, even at extreme output levels, minimizing distortion and delivering pristine highs.

Built to handle demanding performances, the V20 boasts impressive technical specifications. It delivers a continuous RMS power of 700 watts​ with a peak capability of 1400 watts. Its high sensitivity of 102 dB (1W/1m)​ ensures efficient conversion of amplifier power into impactful sound, resulting in a commanding maximum peak SPL of 130 dB. The wide frequency response of 75Hz - 20,000Hz​ provides full-range performance suitable for both music and speech. Its 110° horizontal by 10° vertical​ constant-directivity coverage pattern ensures consistent tonal quality and precise control of sound dispersion across the audience area.

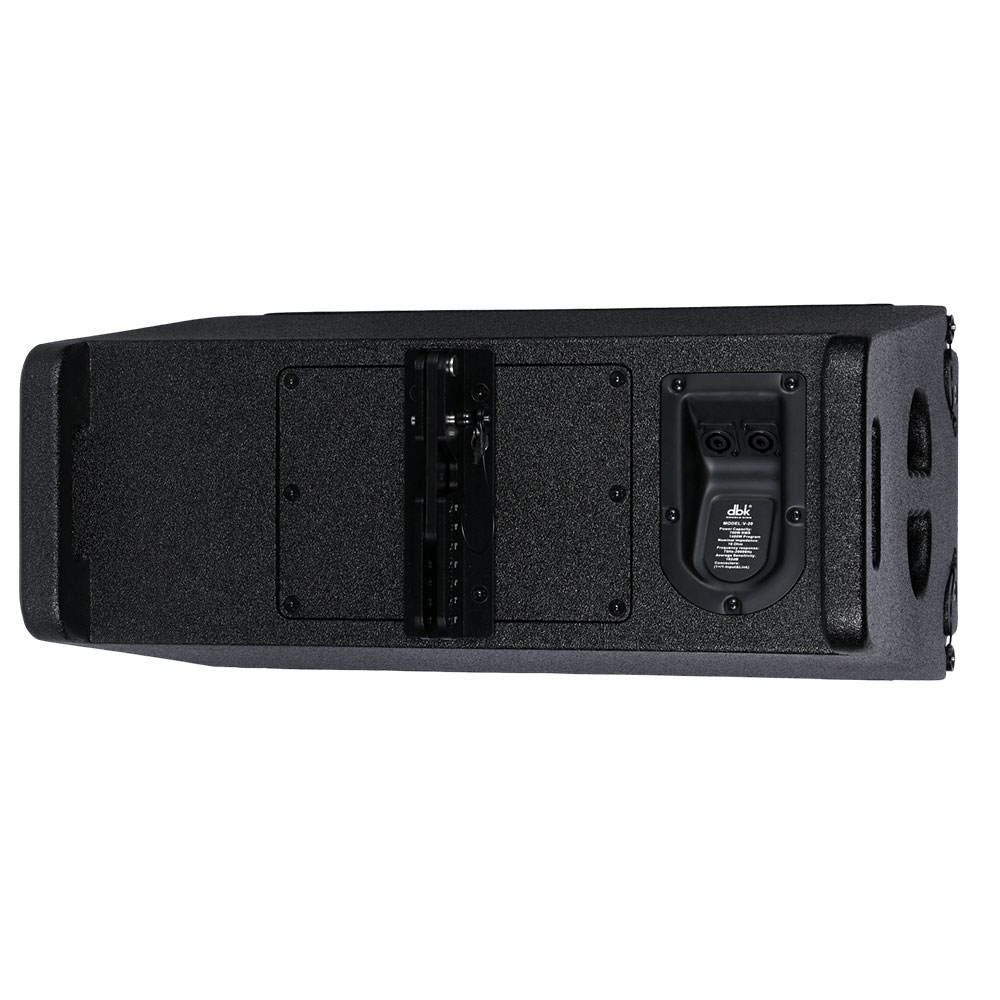

Durability is paramount. The V20's trapezoidal cabinet is constructed from premium 18mm Baltic birch plywood, known for its excellent acoustic properties and strength-to-weight ratio. The exterior is finished with a rugged, textured black polyurea coating​ that is highly resistant to scratches, impacts, and moisture, making it ideal for touring and outdoor use. Integrated, heavy-duty steel M10 fly points with a safety rating of 10:1 allow for secure and reliable arraying or ground-stacking. The cabinet features two ergonomic, recessed handles​ for easy transport and setup. A perforated steel mesh grille with a protective foam backing​ safeguards the high-performance drivers.

The V20 is designed for straightforward integration into any sound system. It is equipped with two parallel NL4 Speakon connectors​ for easy daisy-chaining of multiple cabinets, streamlining your setup process. Its compact form factor and precise angled design allow multiple enclosures to be seamlessly arrayed with minimal gaps, optimizing acoustic coupling and wavefront coherence for superior array performance.
