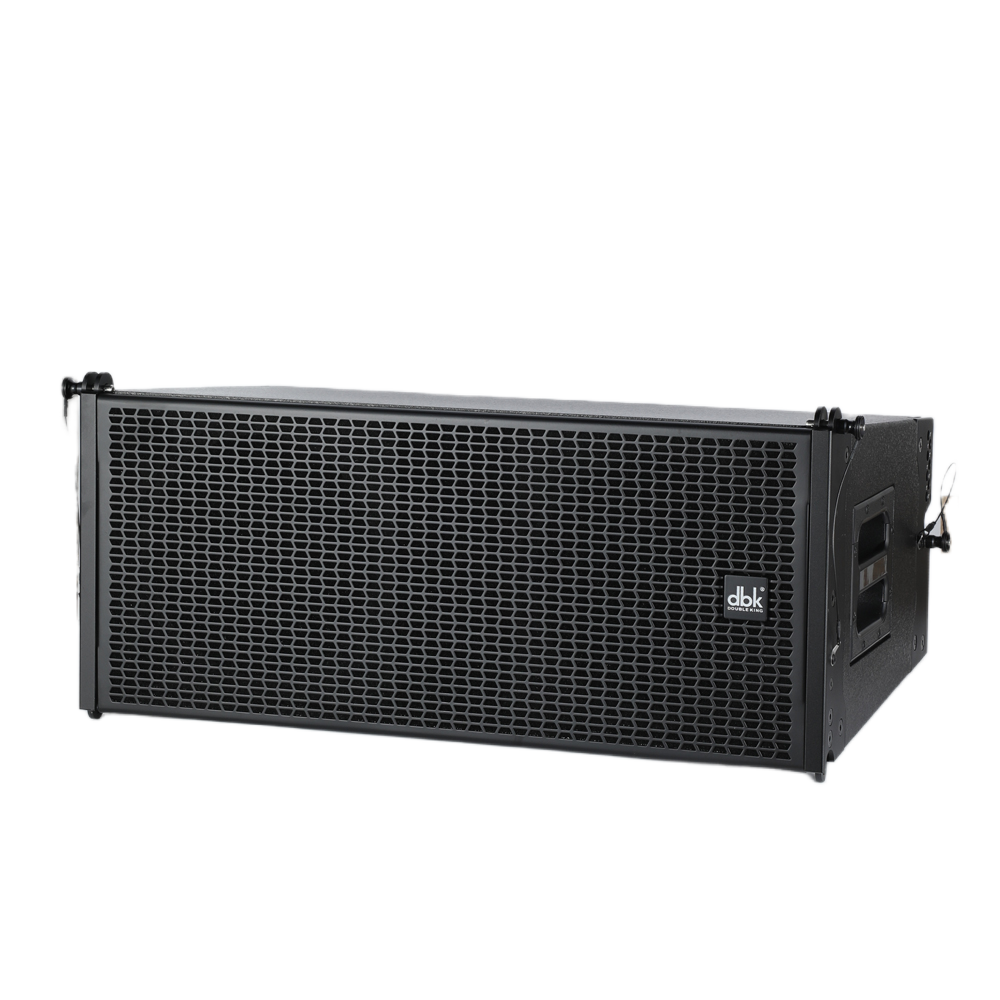

DBK LS 2210 Linear Array Speaker Medium Size Two Way Professional Line Array System

DBK LS 2210 Linear Array Speaker – Medium Size Two Way Professional Line Array System

The DBK LS 2210 is a medium-sized two-way linear array speaker designed for professional sound reinforcement applications including live concerts, touring systems, theaters, houses of worship, outdoor events, and rental sound systems. It combines high output capability, precise directivity control, and durable construction to deliver consistent and high-quality audio performance.

The low-frequency section of the LS 2210 uses two high-power 10-inch paper cone woofers. Surface-mounted midrange phase plugs are applied to improve sound directivity and enhance mid to high frequency sensitivity, resulting in a more focused and efficient sound projection. This design delivers solid low-frequency punch with clear and defined midrange performance.

The high-frequency section features two imported 44mm voice coil composite diaphragm compression drivers. Through a plane wave converter combined with an exponential constant-directivity horn, the LS 2210 produces a consistent wavefront and smooth high-frequency response. This ensures bright, clear, and detailed high frequencies with excellent coverage uniformity.

The LS 2210 cabinet adopts a trapezoidal structure, with high-frequency and low-frequency sections using independent horn outputs. This design increases sound pressure output while minimizing interference between drivers. Precise mechanical alignment between cabinets ensures extremely small gaps when multiple units are combined, allowing accurate array coupling and stable sound dispersion.

Each cabinet supports adjustable angles from 0 to 7.5 degrees with 1-degree increments, making it easy to configure optimal vertical coverage for different venue sizes and audience layouts. The high-strength steel rigging system provides a safety factor of 7 to 1 when flying up to 16 speakers, ensuring safe and reliable installation in professional environments.

The enclosure is constructed from 15mm high-quality plywood and finished with a wear-resistant black waterproof coating with gold sand texture. This finish enhances durability for touring and rental use. Flush-mounted handles on both sides make handling and transportation more convenient, while the black perforated steel grille with internal protection safeguards the speaker components.

When combined with the DBK E-18 single 18-inch subwoofer, the LS 2210 system delivers powerful and elastic low frequencies, clear and bright mid-high frequencies, and delicate, expressive high-end detail. This combination forms a complete and balanced line array system suitable for demanding professional sound reinforcement applications.

With its reliable performance, flexible configuration, and professional acoustic design, the DBK LS 2210 linear array speaker is an ideal solution for users seeking high-quality sound, precise coverage, and long-term durability in modern audio systems.
